Sensor calibration — sledge position system

QUICK GUIDE

Calibration of the sledge positioning system for KLEMM drilling rigs in a few (4) simple steps.

To be carried out after:

replacing the sensor for position monitoring
replacing the feed chain
the feed chain has jumped over the sprocket and the end points can no longer be approached

Start the sensor calibration

Select the control interface of your machine

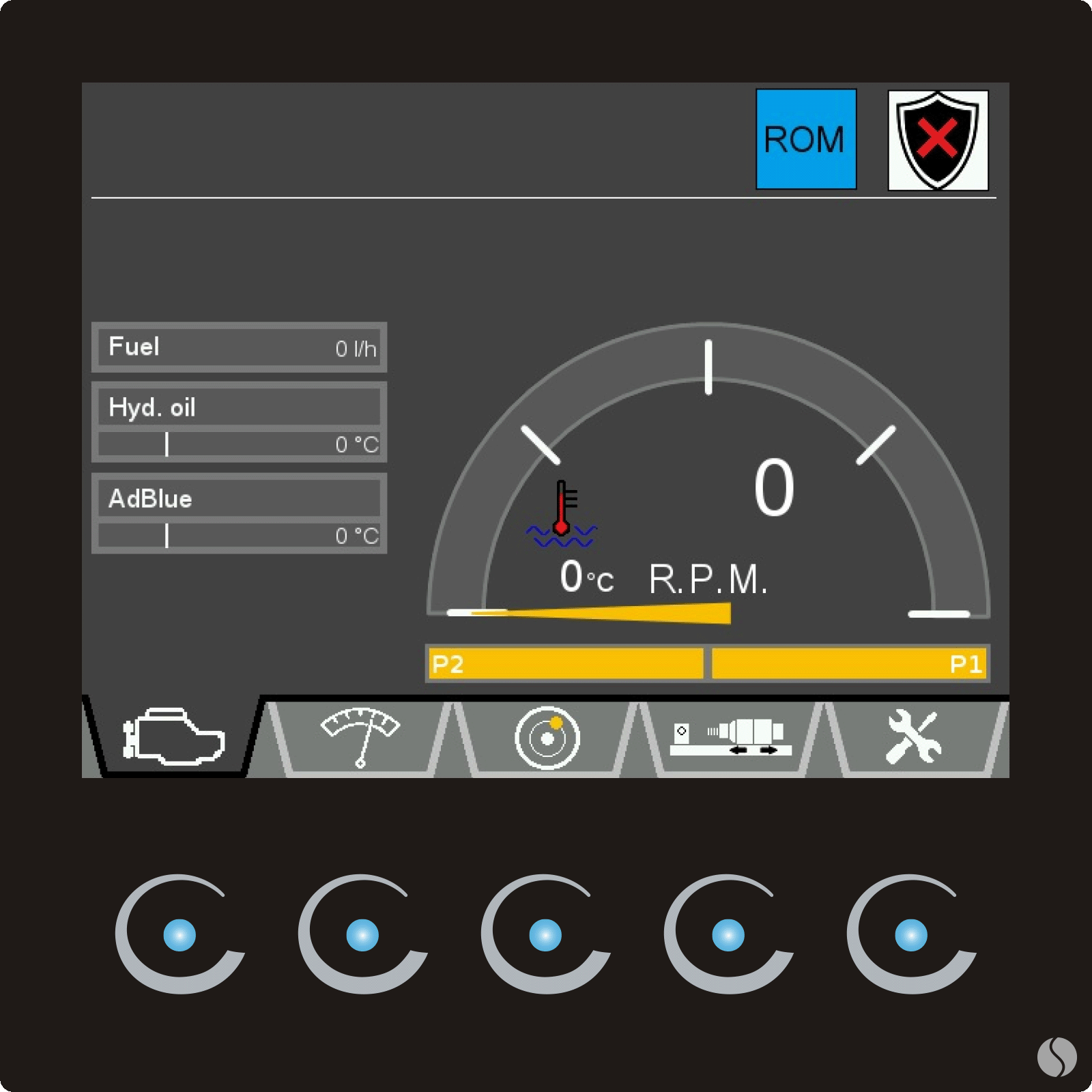

5″ display

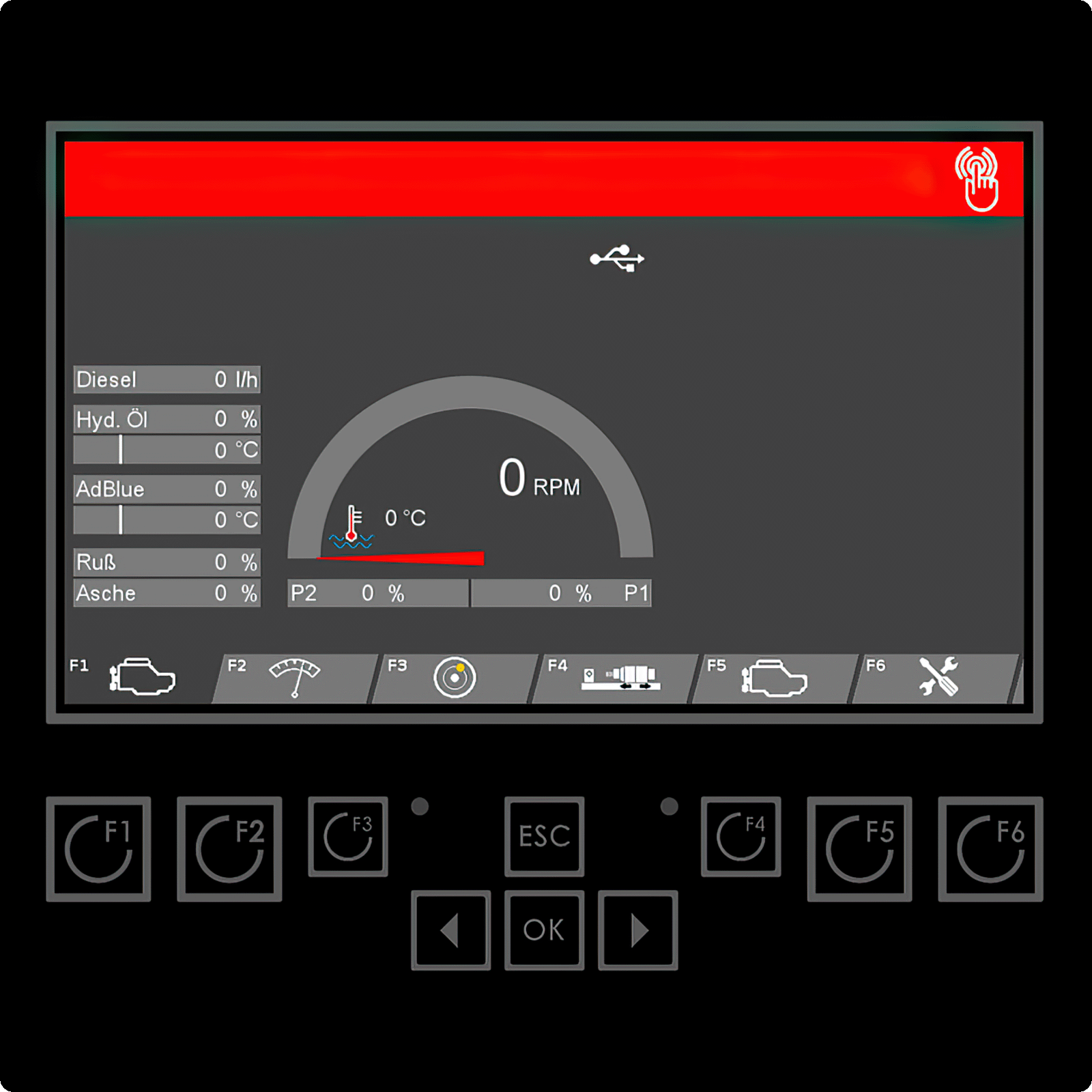

7″ display
