Step 4 — Set zero position and lock system

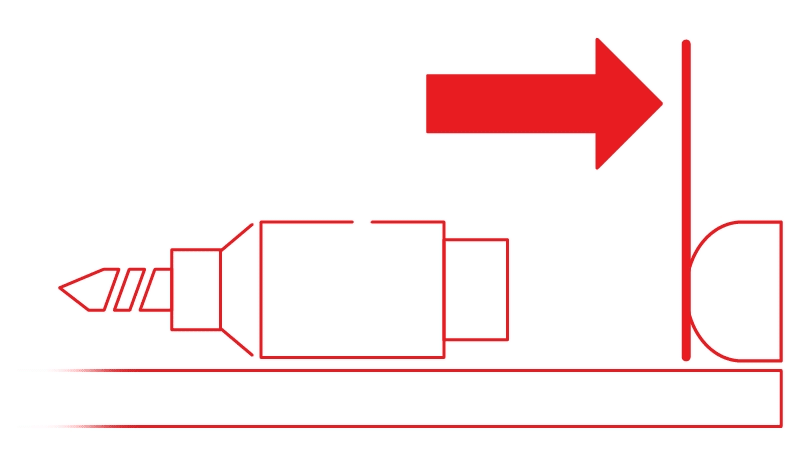

Slowly move the sledge with the rotary head to the top position until it rests lightly against the rubber buffer.

Attention!

As the monitoring is deactivated, the sledge does not stop automatically.

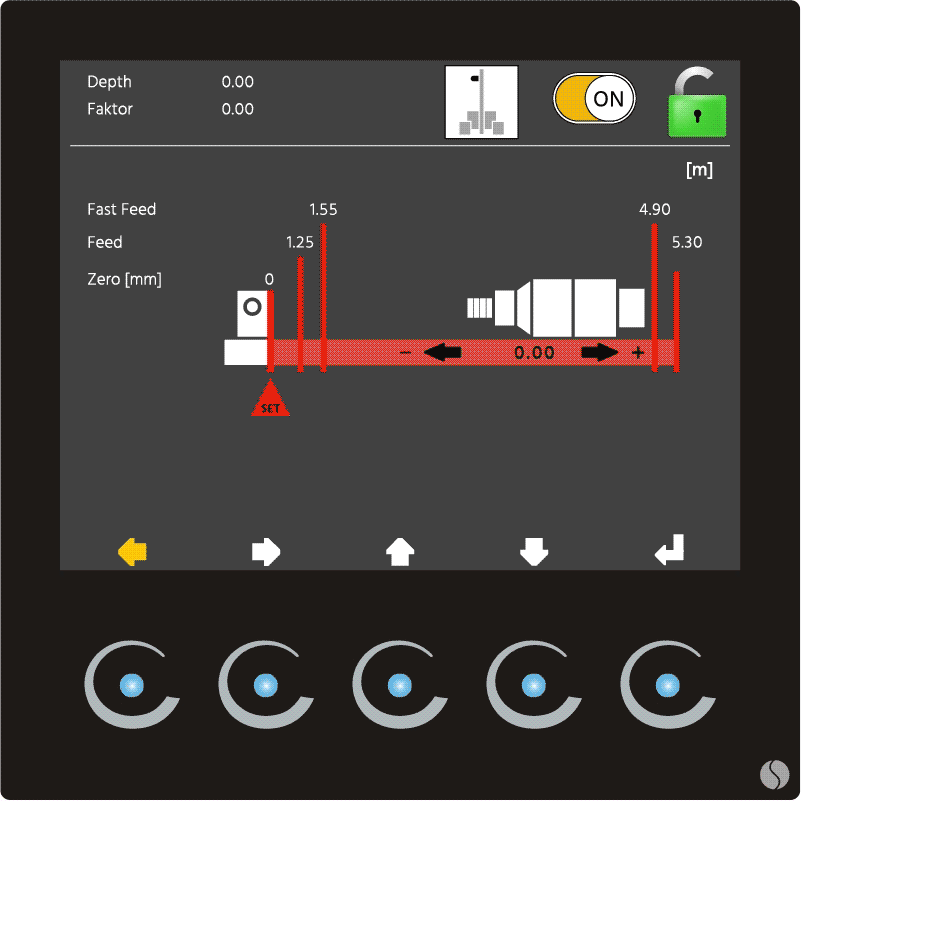

1. Navigate to the calibrating screen by clicking twice on the second blue button from the left.

2. Click on the single zero.

3. Use the number field to enter the highest value on the right-hand side in mm.

   Example: 5.30 m → 5300 mm
   Confirm with Enter ↵ on the right-hand side of the number bar on top

4. Accept this value by clicking on the set symbol 🔺.

1. Navigate back to the first page of the carriage position monitoring system by clicking twice on the left blue button.

2. Reactivate the monitoring system by selecting the first symbol in the menu.

3. Lock the system by clicking on the green lock symbol 🔒.
